Tunable Single Frequency Fiber Laser - 509nm Series
Tunable Single Frequency Fiber Laser - 509nm
Model: TQSF-0509-00800-L-PM
The Tunable Single Frequency Fiber Laser - 509nm is widely used in fields such as Rydberg atom manipulation. This product adopts the technical system of fiber amplification + frequency conversion, possessing advantages such as high fiber output power, narrow linewidth, high polarization extinction ratio, and excellent power stability.
Key Features- 509 nm Fiber Laser
-
Narrow linewidth
-
High Power
-
Wide Temperature Operation
-
Strong Antivibration Performance (GJB 150.16A2009)
-
Multichannel Output (Customizable)
Application
-
Rydberg Atom Excitation & Manipulation
-
Quantum Computing & Information Processing
-
Electromagnetically Induced Transparency (EIT)
-
Quantum Simulation & Optical Lattices
-
HighResolution Atomic Spectroscopy
Technical Specifications
| No. | Technical Specifications of the 509nm Fiber Laser | Parameters |
|---|---|---|
| 1 | Center Wavelength (nm) | 509, Precise Tuning |
| 2 | Wavelength Tuning Range (nm) | >0.3 |
| 3 | Linewidth (kHz@100us) | <20 |
| 4 | Mode-Hop-Free Range (GHz) | >10 |
| 5 | Output Power (mW) | ≥800 (Single-mode PM Output) |
| 6 | Power Stability (RMS@12h) | ≤1% |
| 7 | Polarization Extinction Ratio (dB) | >25 |
| 8 | Power Supply Mode (V) | AC 220 |
| 9 | Power Consumption (W) | <120 |
| 10 | Communication Interface | RS485/RS422 |

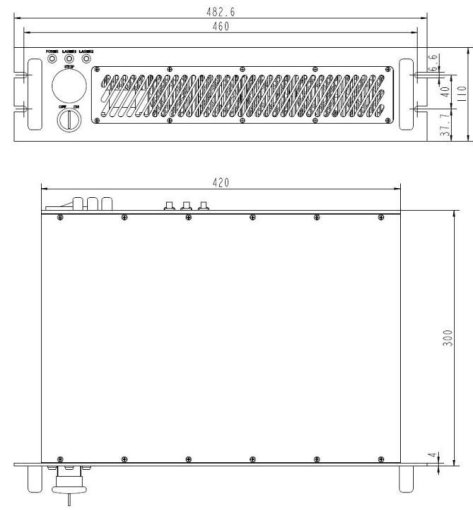

| 11 | Module Dimensions (W×D×H, mm) | 19 inch chassis; 483×300×110 |
| 12 | Output Type | Single-mode PM Fiber Output |
| 13 | Cooling Method | Air Cooling |
| 14 | Working Temperature Range (°C) | 0~40 |

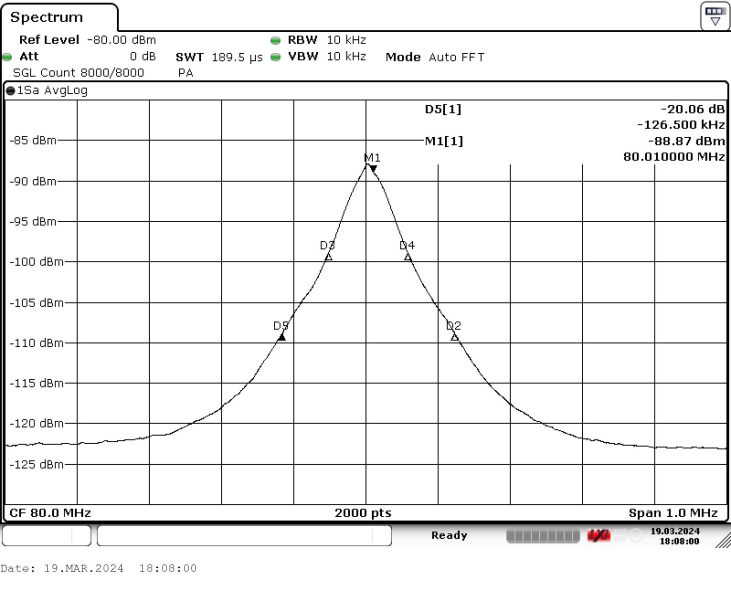

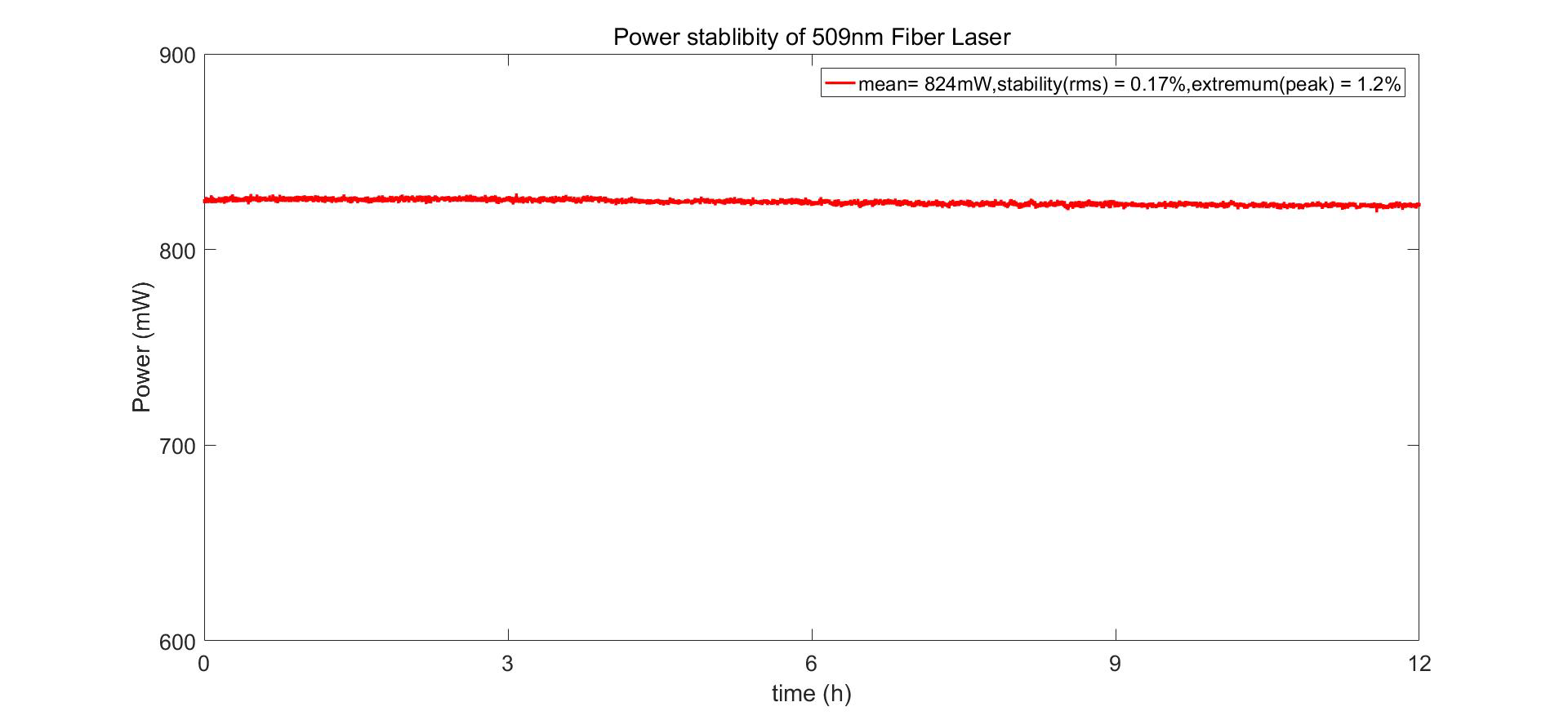

Technical Diagrams
