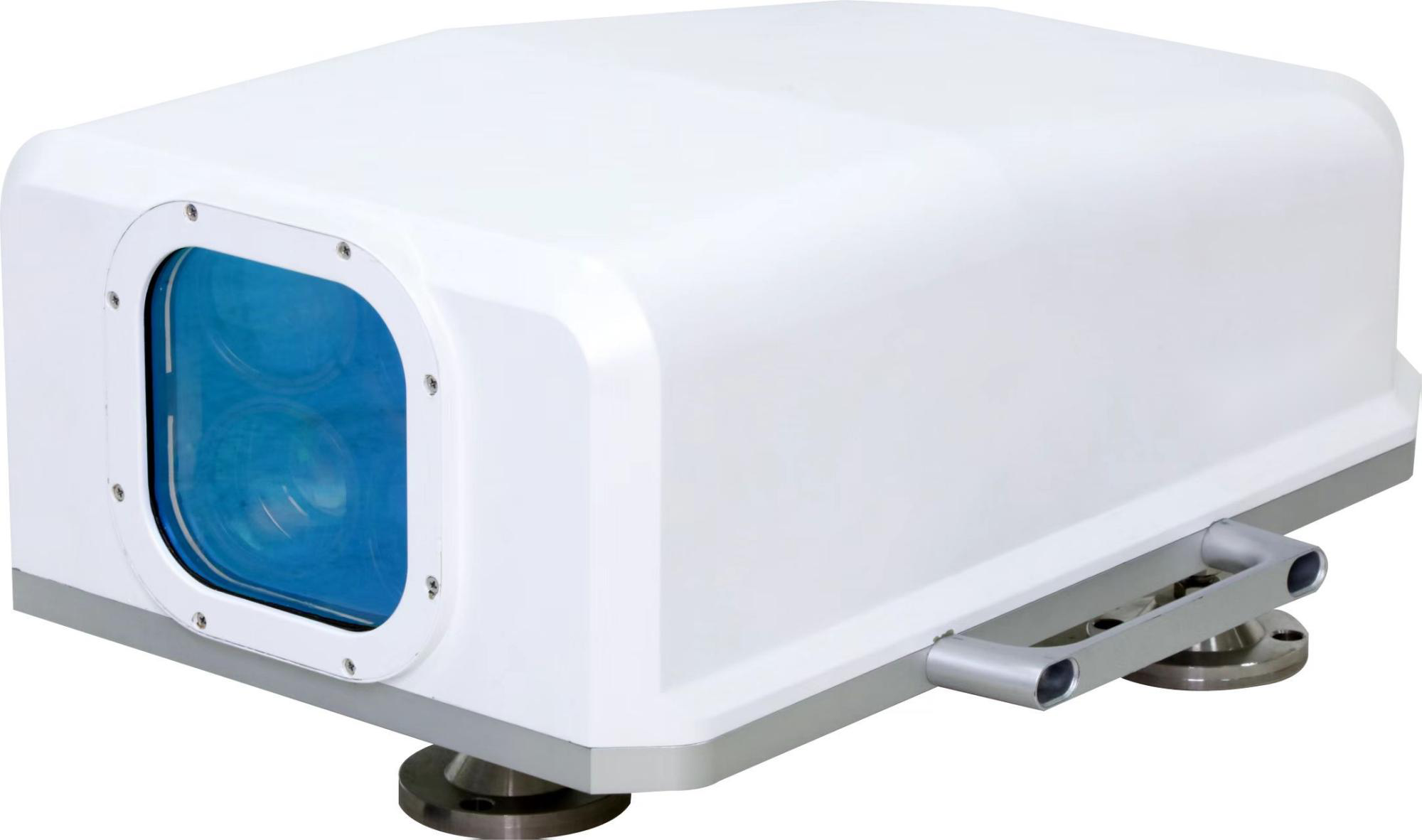

Nacelle Mounted Wind LiDAR
Model: TDWL-800T
The Nacelle Mounted Wind LiDAR TDWL-800T Nacelle Mounted Wind Lidar is a mature product independently developed for market needs. Based on the laser Doppler frequency shift principle, it achieves feedforward control of the wind turbine main control system through remote sensing of the incoming wind vector field. The lidar is configured with a 2-beam or 4-beam structure, measuring wind speed in the 0-50m range and wind direction in the ±180° range, with accuracy up to 0.1m/s and 0.5°. Installed on top of the wind turbine, relying on core proprietary technology, it has strong anti-interference capabilities, is unaffected by blade blockage, and can accurately measure, record, and store large-scale wind field data in front of the turbine. The effective measurement frequency reaches 4Hz. The product is small, low-cost, has good adaptability and high reliability, and can run stably in harsh environments. It is used for turbine forward-looking wind measurement and wind power forecasting. Customized services are available.
Key Features of Nacelle Mounted Wind LiDAR
-
Fully independent core technology
-
Large range, high precision
-
High stability
-
High protection rating
-
Small size, low cost
-
High reliability
Applications
-
Feedforward Pitch Control & Load Reduction
-
Yaw Alignment & Error Correction
-
Power Curve Measurement & Verification
-
Wake Detection and Wind Farm Control
-
Wind Turbine Power Optimization
Technical Specifications
| Index | Technical Specifications of Nacelle Mounted Wind LiDAR | Value |
|---|---|---|
| 1 | Working Principle | Coherent Doppler Shift |
| 2 | Measurement Distance (m) | 40~200/400/800 |
| 3 | Measurement Layers | 10 layers (Configurable) |
| 4 | Measurement Range (Wind Speed) | 0 ~ 50 m/s |
| 5 | Measurement Range (Wind Direction) | -180 ~ 180° |
| 6 | Measurement Accuracy (Wind Speed) | ≤0.1 m/s |
| 7 | Measurement Accuracy (Wind Direction) | 0.5° |
| 8 | Effective Measurement Frequency (Hz) | ≥4 |
| 9 | Laser Type | Pulsed Laser |
| 10 | Beam Structure | 2 beams: Horizontal angle 30°<br>4 beams: Horizontal angle 30°, Vertical angle 10°<br>4 beams: Horizontal angle 50°, Vertical angle 25° |
| 11 | Protection Rating | IP67 |
| 12 | Corrosion Protection | ISO C5 |
| 13 | Working Temperature (°C) | -40 ~ 60 |
| 14 | Storage Temperature (°C) | -45 ~ 65 |
| 15 | Survival Wind Speed (m/s) | 70 |
| 16 | Communication Protocol & Interface | CANOPEN(DBQ), Modbus(RJ45) |
| 17 | Weight (kg) | ≤15 |
| 18 | Dimensions (W×D×H, mm) | 300 × 490 × 225 |
| 19 | Lifespan (yr) | ≥5 |

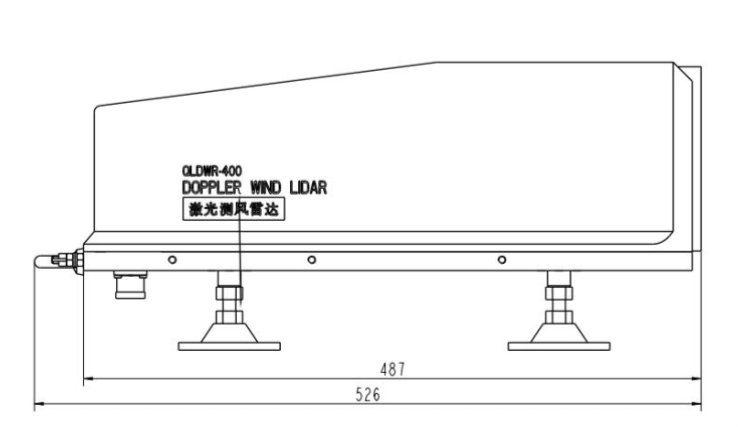

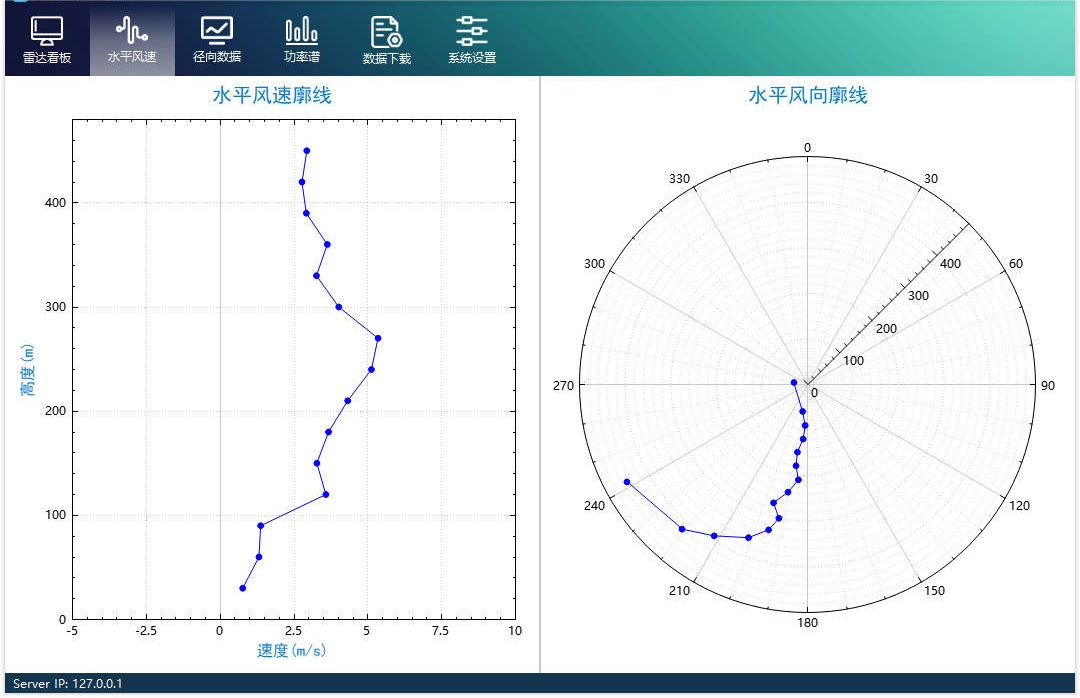

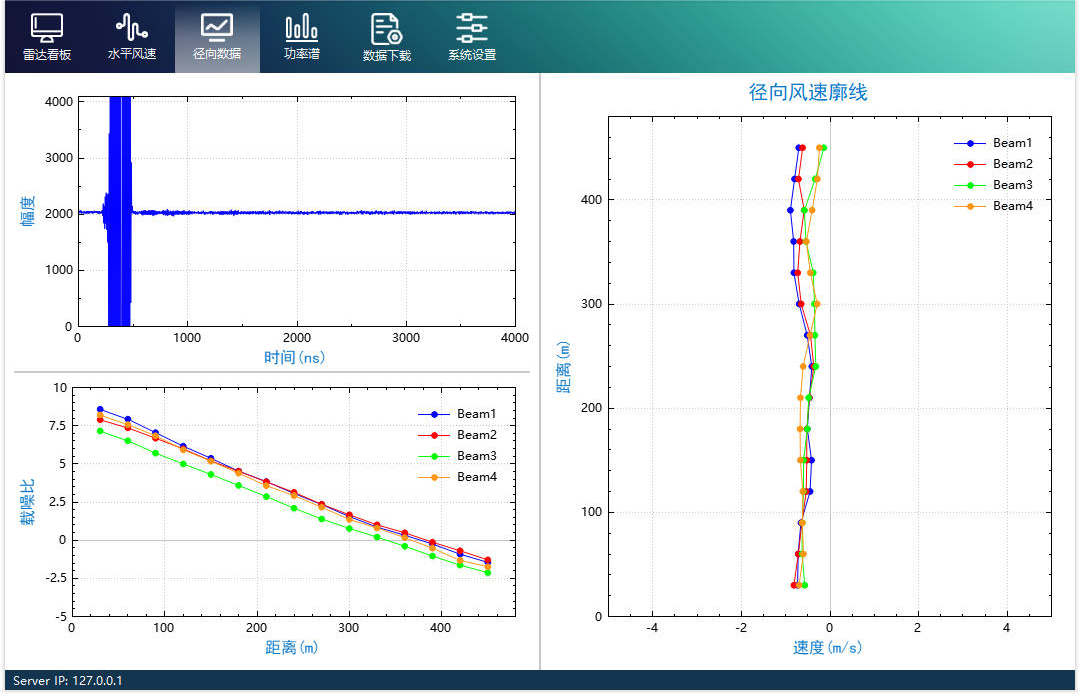

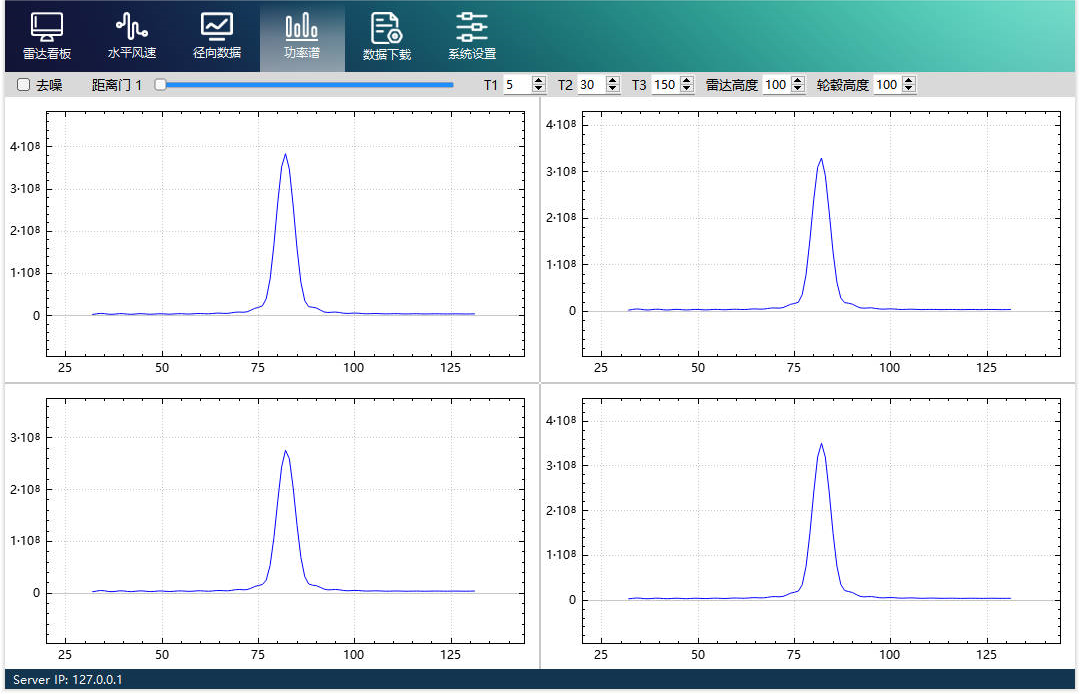

Software Interface
