Ground-based Laser Ceilometer
Model: TDWL-015H
The Ground-based Laser Ceilometer TDWL-015H ground-based laser ceilometer is a cloud height measurement device for meteorological observation and aviation safety applications. Based on a photon-counting co-aperture transceiver lidar system, it achieves multi-layer cloud detection within 15km. It features cloud height and cloud amount statistics, vertical visibility, atmospheric boundary layer, and backscatter profile detection.
Key Features of Lidar Ceilometer
-
Range up to 15km
-
Lightweight
-
Detected cloud layers: ≥3
-
Dualwavelength cloud detection enhancement technology
-
Coaperture transceiver, no blind zone
-
Small size, low cost
-
Antiinterference, maintenancefree
-
High reliability
Applications
-
Aviation Weather Monitoring & Airport Safety
-
Meteorological Observation & Weather Forecasting
-
Planetary Boundary Layer (PBL) Research
-
Wind Power & Renewable Energy Assessment
-
Military & Tactical Field Support
Technical Specifications
Technical Specifications
| Index | Technical Specifications of Ground Based Laser Ceilometer | Value |
|---|---|---|
| 1 | Range (km) | 0 ~ 15 |
| 2 | Detection Range (km) | 0 ~ 15 (No blind zone design) |
| 3 | Resolution (m) | 5 |
| 4 | Detectable Cloud Layers | ≥3 |
| 5 | Recording & Upload Time (s) | 2 ~ 600 |
| 6 | Measurement Targets | Aerosols, Clouds (Raindrops, Ice crystals) |
| 7 | Data Products | Outputs second-level real-time data and minute-level data. Supports local storage and real-time transmission. Supports Vaisala CL51 protocol and GB/T 33695-2017 protocol. |
| 8 | Average Power Consumption | ≤200W |
| 9 | Dimensions (W×D×H, mm) | ≤380 × 380 × 910 |
| 10 | Weight | ≤35kg |
| 11 | Protection Rating | IP66 |
| 12 | Corrosion Protection | ISO C5 |
| 13 | Working Temperature (°C) | -40 ~ 60 |
| 14 | Storage Temperature (°C) | -40 ~ 85 |
| 15 | Communication Protocol & Interface | RS422, RS485, Ethernet |
| 16 | Lifespan | ≥5 years |

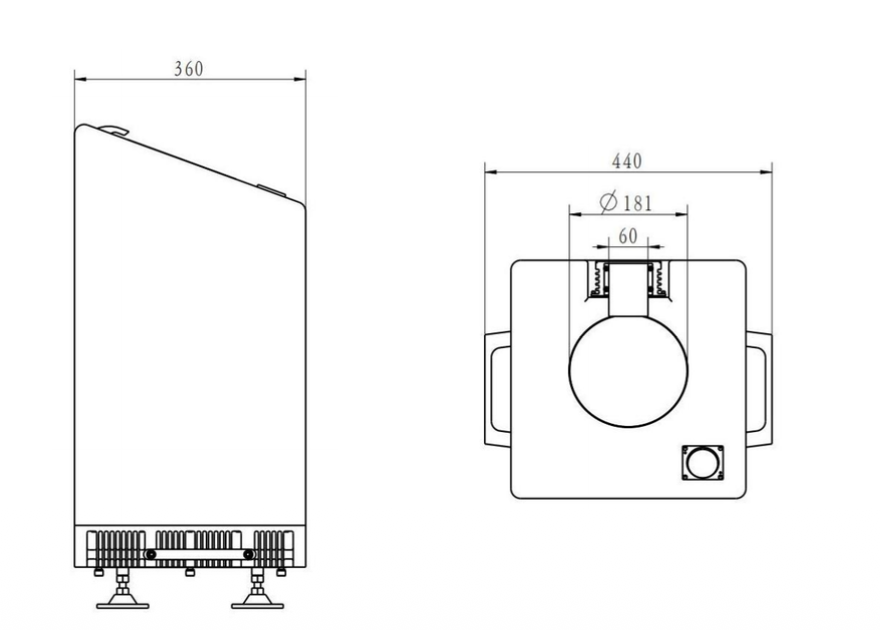

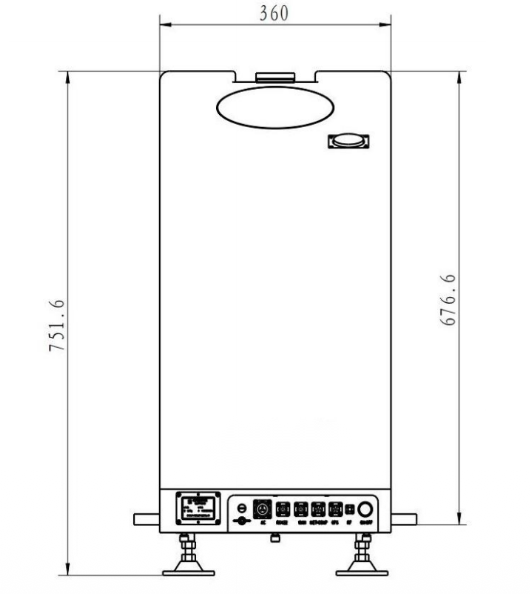

Technical Diagrams

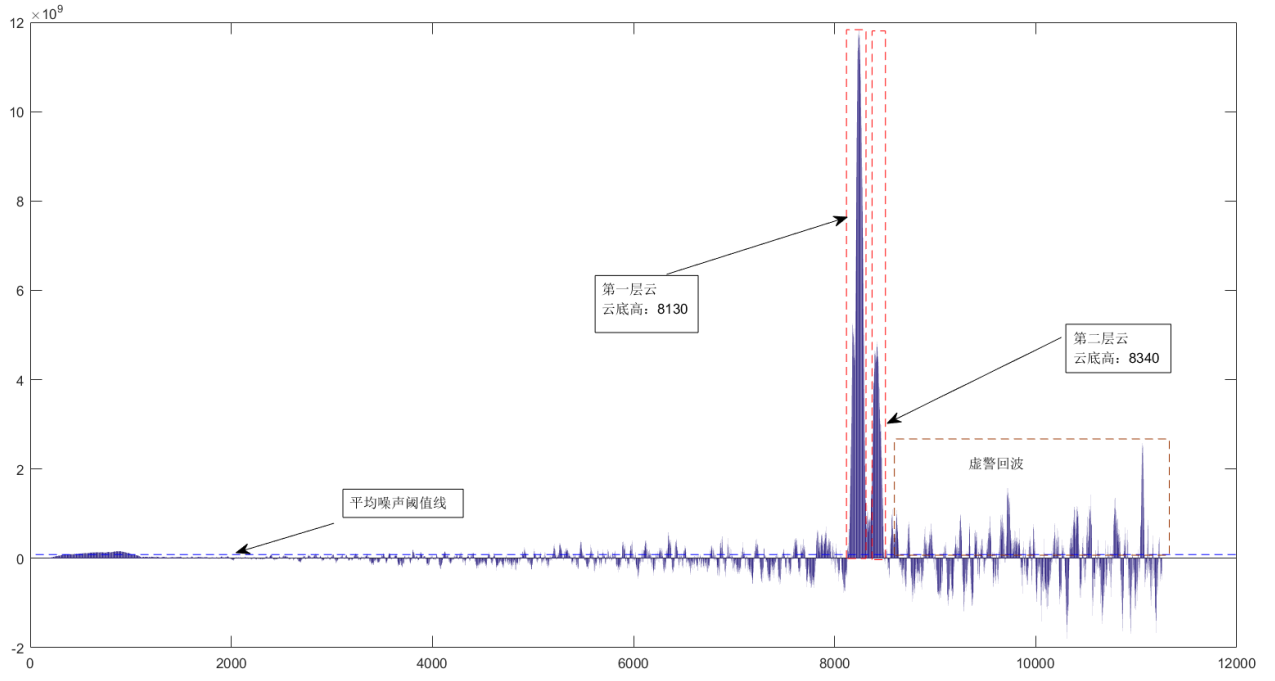

Software Interface
